Using SftPrintPreview/OCX with Visual Basic
Adding SftPrintPreview/OCX To A Project
Special Considerations
- Color Properties
Adding SftPrintPreview/OCX To A Project

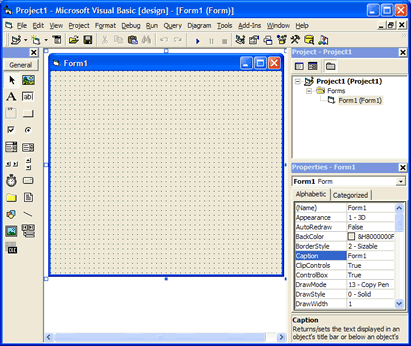

The SftPrintPreview/OCX control must be added to the Toolbox before it can be used in a project. The Toolbox normally displays the standard Visual Basic controls and any other ActiveX controls that have been added previously.
The control is added to the Toolbox using the Project, Components... menu command, which displays the following dialog:
Select the control "SftPrintPreview/OCX 1.0 Print Preview Control" by placing a check mark next to it and click OK. Make sure to select "SftPrintPreview/OCX 1.0 Print Preview Control" and not the control named "SftPrintPreview/OCX 1.0 Print Preview Control (IE)" as that control is specific to Internet Explorer and HTML pages.
This adds the control to the Toolbox. If you don't see the control in the list, make sure Selected Items Only is not checked. Once you click Apply or OK and an error message is displayed, the product SftPrintPreview/OCX is not correctly installed or the control may have been unregistered accidentally. Quit Visual Basic and use the entry Maintenance, Register SftPrintPreview OCX in Windows Registry in the SftPrintPreview OCX 1.0 program group to register the control. Restart Visual Basic and try to add the control to the Toolbox again.
for use with Visual Basic (and other development tools)
| If the icon appears with a small "e" in the top left corner as shown on the right, you have accidentally added the wrong control to the Toolbox. This control is specific to Internet Explorer and HTML pages. Remove the control, then add the correct control by following the above instructions. |  |

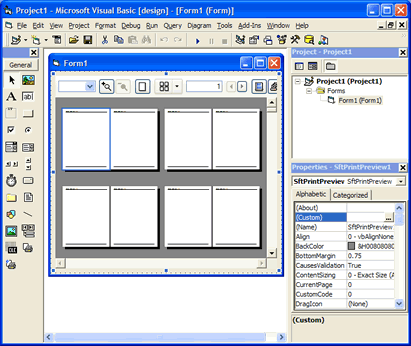

Now the control can be added to a form by clicking on the SftPrintPreview/OCX button of the Toolbox.
All required steps have now been completed to use SftPrintPreview/OCX.
For a complete example, please consult the topics "SftTree/DLL and SftTree/OCX", and "RichEdit Control" or "Application-Generated Output".
After adding the control to the form, right click on the control and select the Properties... entry of the popup menu. This displays the Property Dialog for the control. Please note that you can right-click on a property in a Property Dialog or double-click on the description of a property to access its complete help information.
This control has many properties and methods which you can use. This is a very simple example and doesn't even begin to exploit the capabilities of this control. Please take a moment to familiarize yourself with the objects offered by the SftPrintPreview/OCX control. Each object represents a specific area of the control and can be fully customized. Also make sure to run the demo which is included with this product and take a look at the included samples.
Special Considerations
Color Properties
The valid range for a color value is 0 to 16,777,215 (&HFFFFFF). The high order byte of a number in this range equals 0; the lower 3 bytes, from least to most significant byte, determine the amount of red, green, and blue, respectively. The red, green, and blue components are each represented by a number between 0 and 255 (&HFF). If the high byte is not 0, the system colors as defined in Control Panel's settings are used. The Windows API GetSysColor defines all valid constants. Please see your development environment's documentation for applicable color constants.
SftPrintPreview1.PaperColor = vbHighlight
SftPrintPreview1.ShadowColor = vbRed
SftPrintPreview1.SelectedColor = &HFF ' red
Dim c As Long
c = SftPrintPreview1.PaperColor
