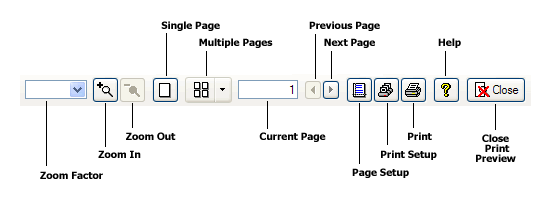

SftPrintPreview/OCX offers a built-in tool bar to allow the end-user to customize the current Print Preview.
The tool bar components offer ToolTip help when the mouse cursor rests over the item.
The tool bar and ToolTip text is customizable and can be translated into other languages (see National Language Support).
Some of the tool bar buttons can be hidden (see WantCloseButton, WantHelpButton and WantPageSetupButton properties), if they are not needed by an application.
The entire tool bar can be hidden using the Toolbar property, if an application wishes to implement its own tool bar. This may be desirable if achieving the same, consistent look across the entire application is necessary.
The Print Preview control by default allows the display of 1 through 64 pages at one time. The end-user can select the exact number of pages using the "Multiple Pages" button. By clicking on the drop down portion, a grid appears where the number of rows and pages per row can be selected. Some applications may want to limit the maximum number of pages, particularly if rendering the output can be time consuming. The maximum number of pages is defined using the MaxPageRows and MaxPageGroups properties.
Input | Description |
Zoom Factor | Allows entry of a zoom factor value between 10 and up to the maximum defined using the MaxZoom property. The default maximum value is 1000%. |
Zoom In | Increases the zoom factor by the value defined using the ZoomIncrDecr property. The default value is 100%. If multiple pages are currently displayed, only the current page will be displayed, at the specified zoom factor. |
Zoom Out | Decreases the zoom factor by the value defined using the ZoomIncrDecr property. The default value is 100%. If the resulting zoom factor is 0%, multiple pages are displayed. |
Single Page | Switches to single page mode, setting a zoom factor suitable to show the entire current page in the available display area. |
Multiple Pages | Clicking this button, will increase the currently displayed number of pages, going from one page to 1 x 2, 2 x 4, 3 x 6, 4 x 8, 5 x 10, 6 x 12, back to one page. |
Multiple Pages (Drop down button) | Displays a grid, allowing selection of the exact number of pages (rows and columns) to be displayed. |
Current Page | Allows entry of the selected page number. Page numbering starts at 1. |
Previous Page | Makes the previous page the new current page. |
Next Page | Makes the next page the new current page. |
Page Setup | The PageSetupWanted event occurs when the user clicks on the Page Setup button. The Page Setup dialog is not automatically invoked. |
Print Setup | The Print Setup dialog is automatically invoked. |
The Print dialog is automatically invoked. | |
Help | The HelpWanted event occurs when the user requests online help. |
Close Print Preview | The CloseWanted event occurs when the users requests to close the Print Preview control window. |
If Windows themes are enabled and available (see UseThemes property), the tool bar will be rendered using Windows themes and the user-defined background color (see ToolbarColor property) is ignored.
The control colors and button images cannot be customized. If detailed customization is required, an application can implement its own tool bar.
Most components of the tool bar automatically perform the desired action, such as zooming in/out, displaying the selected page(s), etc. A few components will generate events which must be handled by the application, so the application can respond to the requested action. The events generated by the "Page Setup", "Print" and "Help" buttons must be handled, otherwise these buttons have no effect.
Applications handle the following events:
The CloseWanted event occurs when the users requests to close the Print Preview control window.
The HelpWanted event occurs when the user requests online help.
The PageSetupWanted event occurs when the user requests the Page Setup dialog.
