Using SftMask/OCX with Delphi 2005 And Newer
|
|
|
|
|
|
Using SftMask/OCX with Delphi 2005 And Newer |
This section describes how SftMask/OCX is typically used with Delphi 2005 and more recent Delphi versions. For information on how to use this product with older Delphi versions, such as Delphi 7, please see "Using SftMask/OCX with Delphi 7 and Newer".
Adding SftMask/OCX To Delphi
Adding SftMask/OCX To A Project
Special Considerations
- Picture Properties
- Font Properties
- Color Properties
- Object vs. Interface
The SftMask/OCX control must be added to the Tool Palette before it can be used in a project.
In order to add the control to the Tool Palette, a package has to be created containing the control.

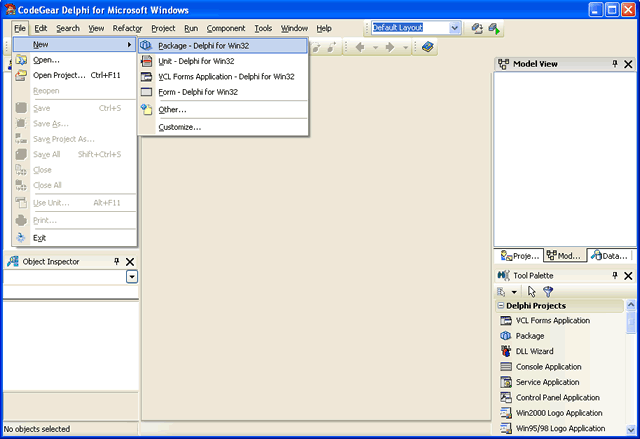

First, using the File, Package - Delphi for Win32 menu command, create a new package using a suitable name, saving it in a permanent location.

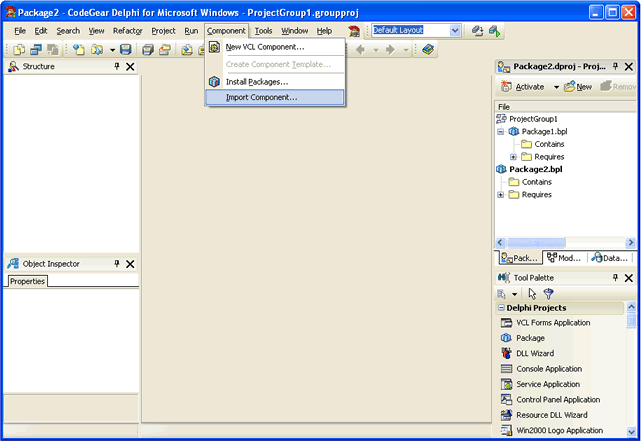

Once the package has been created, the control can be imported into the package using the menu command Component, Import Component....

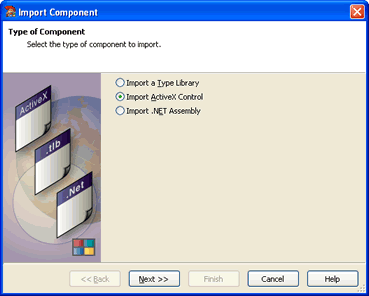

Make sure to select Import ActiveX Control from the following dialog, the click Next>>.

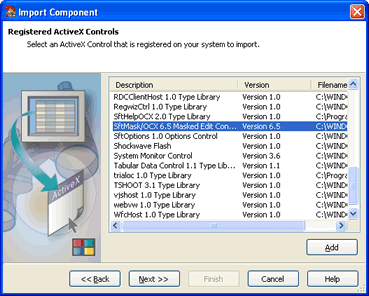

On the Import Component dialog, select the control "SftMask/OCX 6.5 Masked Edit Control Version 6.5 by highlighting it and click Next>>. Make sure to select "SftMask/OCX 6.5 Masked Edit Control Version 6.5" and not the control named "SftMask/OCX 6.5 Masked Edit Control IE" as that control is specific to Internet Explorer and HTML pages. Click Next>>.

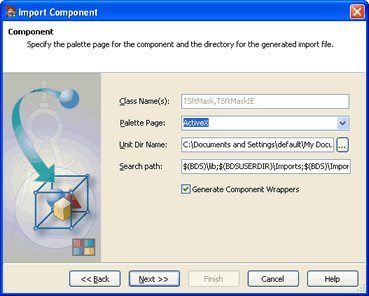

In the resulting dialog you are prompted for a Palette Page and additional information. Make sure to specify a permanent location for Unit Dir Name, so generated files are later accessible by applications. Then click Next>>.

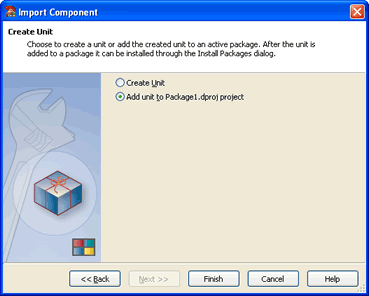

On the following dialog, select Add unit to <yourpackagename> project, then click Finish.
Now the package is prepared and contains the required definitions for SftMask/OCX 6.5.

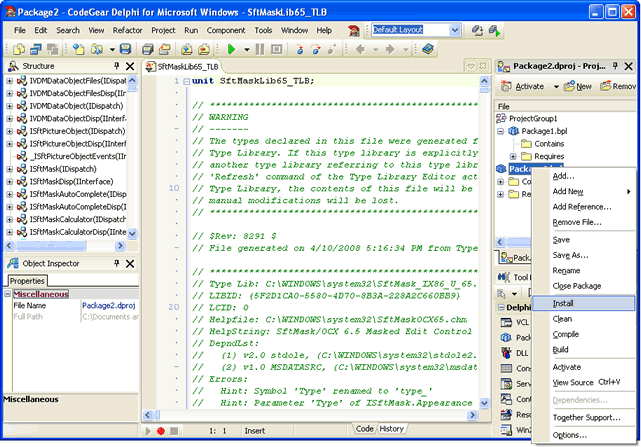

Finally, the package can be installed by right-clicking on the package name in the Project Manager window. Select Install from the popup menu presented. This will add the control to your Tool Palette.

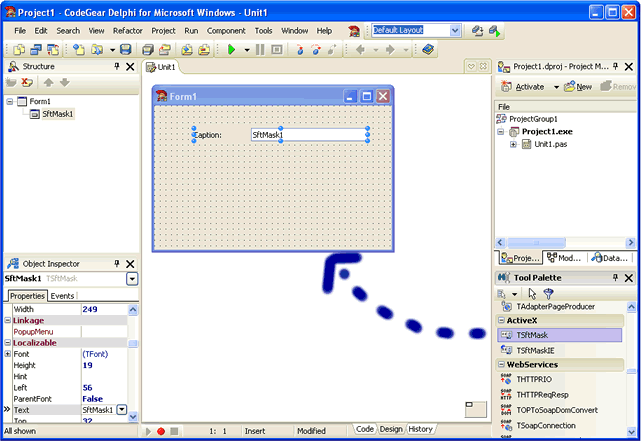

Now the control can be added to a form by clicking on the SftMask/OCX button of the Component Palette (ActiveX tab).
All required steps have now been completed to use SftMask/OCX.
For a complete example, add the following sample code to initialize the control:
procedure TForm1.FormCreate(Sender: TObject);
begin
SftMask1.Mask := '$D - $T';
SftMask1.EditStyle := editSftMaskCalendarDropDown;
SftMask1.TabAdvance := True;
SftMask1.AutoAdvance := True;
end;
In this example, the control is initialized at run-time using code. Of course it is also possible (and much easier) to set up all properties using the property pages. You can access the property pages by right-clicking on the control and select the Properties... entry of the popup menu.
You can run the sample application and it displays an edit control allowing entry of a date and time value with a popup calendar.
This sample displays an edit control for numeric input with popup calculator:
procedure TForm1.FormCreate(Sender: TObject);
begin
SftMask1.Mask := '!1$C,8.2!!';
SftMask1.Alignment := alignSftMaskRight;
SftMask1.Contents.Value[1] := 88.12;
end;

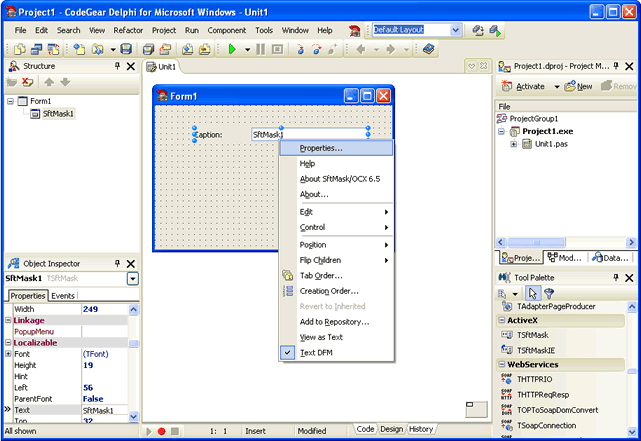

After adding the control to the form, right click on the control and select the Properties... entry of the popup menu. This displays the Property Dialog for the control.
Please note that you can right-click on a property. This displays a popup menu which can be used to access help information for the property or Property Dialog. Or double-click on the description of a property to access its help information.
This control has many properties and methods which you can use. This is a very simple example and doesn't even begin to exploit the capabilities of this control. Please take a moment to familiarize yourself with the objects offered by the SftMask/OCX control. Each object represents a specific area of the control and can be fully customized. Also make sure to run the demo which is included with this product and take a look at the included samples.
When adding SftMask/OCX to a project, Delphi generates a class wrapper to fully support an ActiveX control such as SftMask/OCX. After the control has been added to the Delphi Tool Palette, your package (defined above) contains the file SftMaskLib65_TLB.pas. This file has been generated by Delphi and contains all property and method definitions. The generated file should be used as a reference. Please note that the Pascal definitions are generated by Delphi and are not part of SftMask/OCX.
While some graphics properties are generated to use a TPicture type, many properties and methods do not. These use the OLE picture type IPictureDisp instead, which cannot directly be used with a TPicture type. The Syntax portion of each method, property and event shows the full syntax and required picture type (TPicture or IPictureDisp).
The TPicture type can easily be converted into an IPictureDisp type using Delphi's GetOlePicture function.
The Syntax section of picture properties typically shows Get, Put and PutRef forms. If both Put and PutRef are available, PutRef is the preferred form as it conserves resources and assigns a picture object reference to the control. Put causes the control to completely copy the picture object.
While some font properties are generated to use a TFont type, many properties and methods do not. These use the OLE font type IFontDisp instead, which cannot directly be used with a TFont type. The Syntax portion of each method, property and event shows the full syntax and required font type (TFont or IFontDisp).
The TFont type can easily be converted into a IFontDisp type using Delphi's GetOleFont/SetOleFont functions.
The Syntax section of font properties typically shows Get, Put and PutRef forms. If both Put and PutRef are available, PutRef is the preferred form as it conserves resources and assigns a font object reference to the control. Any change to the font object is reflected in the control also. Put on the other hand causes the control to completely copy the font object.
Color properties (without parameters) of the SftMask object use the Delphi TColor type, but all other properties and objects (such as SftMaskCalculator, etc.) use the Cardinal type. Converting a Delphi TColor type to a Cardinal (OLE color value) is easily accomplished using the Cardinal conversion.
The valid range for a color value is 0 to 16,777,215 ($00ffffff). The high order byte of a number in this range equals 0; the lower 3 bytes, from least to most significant byte, determine the amount of red, green, and blue, respectively. The red, green, and blue components are each represented by a number between 0 and 255 ($FF). If the high byte is not 0, the system colors as defined in Control Panel's settings are used. The Windows API GetSysColor defines all valid constants. Please see your development environment's documentation for applicable color constants.
The Syntax portion of each method and property shows whether a TColor type or an OLE color of type Cardinal is used.
TColor Type
var c : TColor;
SftMask1.BackColor := clHighlight; SftMask1.BackColor := clRed; SftMask1.BackColor := $000000FF; // red
c := SftMask1.BackColor;
OLE Color Value
var c : TColor;
SftMask1.Calculator.BackColor := Cardinal(clHighlight); SftMask1.Calculator.BackColor := Cardinal(clRed); SftMask1.Calculator.BackColor := $000000FF; // red
c := SftMask1.Calculator.BackColor;
The main control is represented by an object of the TSftMask class, but can also be represented by its ISftMask interface. The ISftMask interface can be retrieved using the Direct property.
Certain methods and properties have different names and return types, based on how they are accessed. While (for example) an object based on the TSftMask class is mostly equivalent to the ISftMask interface exposed by the control, Delphi can introduce minor differences. Such differences are shown in the Syntax section of the affected methods and properties. All other objects are identical to their interfaces and no distinction is made.
The Syntax portion shows both forms, the class member and the interface method (the interface method is always marked with a Note indicator). If both forms are identical, only one entry is shown.
Some properties (particularly font and picture properties) may require different types. For example, the Font property accepts a TFont object when accessed through a TSftMask class object, but uses a IFontDisp interface pointer when accessed directly though the ISftMask interface pointer. IFontDisp can be provided using the GetOLEFont function.
