SftTree/DLL is a tree control for the WindowsÔ operating system, offering multi-line, multi-column, hierarchical data displays for applications written using C, C++ and MFC.

SftTree/DLL Control

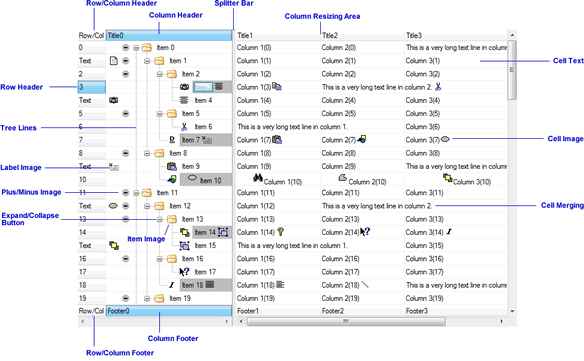

SftTree/DLL offers many features from simple, graphical list box displays to complex hierarchical data displays:

• Hierarchical item display

• Fixed or variable height items

• Single and/or multiple text lines per cell with word wrap

• Single and multiple selection built-in

• Virtual mode (for flat lists only)

• Owner-drawn cells and content windows for complete control over cell contents

• Printing and Print Preview using SftPrintPreview/DLL

• Splitter bar

• ToolTips and ScrollTips

• Drag & drop with automatic scrolling, within and outside tree control

• Single and multiple roots

• Expand/collapse buttons

• Column headers as titles or buttons with images and text

• Column footers as titles or buttons with images and text

• Resizable and reorderable columns

• Individual column colors

• Fixed width or open ended last column

• Row headers as titles or buttons with images and text

• Row/column header as title or button with images and text

• Row/column footer as title or button with images and text

• Selectable column alignment (left, right, center)

• Sorting

• Cell editing using Windows controls

• Tree items with individual attributes

• All images fully customizable

• Tree lines fully customizable

• Support for C and C++ (MFC) using Visual C++

• Support for Windows 2000 through Windows 10, 32-bit and 64-bit processors

• Complete implementation, not a sub/superclassed Windows control

• No predefined maximum number of items

Source Code

The source code for the MFC C++ classes for tree control access is supplied.  Any application that you develop as a licensed user can use SftTree/DLL royalty-free (some restrictions apply), as long as only the DLL is shipped with your application.

Languages Supported

SftTree/DLL supports C, C++ and other languages when using direct calls to the DLL. SftTree/DLL can be called using the definitions provided in the supplied header file. SftTree/DLL is shipped with class definitions which support the Microsoft Foundation Class Library (MFC).

Environments Supported

Processor support depends on the installed and purchased product versions.

• 32-bit applications on Windows Windows 2000, Windows XP, Windows Server 2003, Windows Vista, Windows Server 2008 (R2), Windows 7, Windows 8, Windows 10 and the server editions

• 64-bit support when running Windows XP x64, Windows Server 2003 x64, Windows Vista x64, Windows Server 2008 (R2) x64, Windows 7 x64, Windows 8 x64, Windows 10 x64 with AMD 64-bit processors or Intel 64-bit processors

UNICODE support is available for all platforms.

The product supports the same easy to use API on all platforms.

Windows 98 and Windows ME are no longer supported. For support of these platforms, SftTree/DLL 6.0 must be used instead.

Royalties

Any application that you develop can use SftTree/DLL royalty-free in run-time only mode; design-time features are not available.  Each user (developer) who needs access to any portion of the product must license a copy of SftTree/DLL.
